Power-Sweep Bin Unloading System
Power-Sweep Bin Unloading System

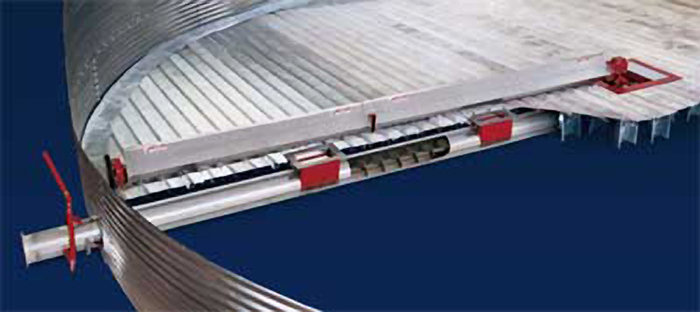

Operated entirely from outside the bin, the Power-Sweep Bin Unloading System allows grain to be unloaded without having to enter the bin. One motor on the exterior power head operates both the unloading auger and the bin sweep. The basic system includes: (1) center power well and roller-supported gate with gear boxes, (2) bin sweep w/ back-up shield and reduction wheel, (3) under-bin tube and auger, (4) intermediate wells w/ roller-supported gates, and (5) bin wall flange; and control pipe kit with lever opener. The power head attaches with a square stub to make moving bin to bin more time efficient; the sweep remains in the bin at all times. Six-, eight-, and ten-inch package systems available for 15- to 60-foot-diameter bins.

Archived This product is no longer produced. Information is included for reference and archival purposes.
Estimated Cost Cost range: See below

Limitations Limitations Addressed by Product: Upper extremity, Lower extremity, Strength/endurance, Back, Respiratory


SourceHutchinson/Mayrath (GLOBAL, Inc)
P.O. Box 629
514 Crawford St
Clay Center, KS, 67432
Websitewww.hutchinson-mayrath.com
Emailhmr@hutchinson-mayrath.com
Phone800-523-6993
785-632-2161
Fax765-632-5964
Est. Cost$5,500 depending on size
