Hand Brake Levers
Hand Brake Levers
Hand Brake Levers

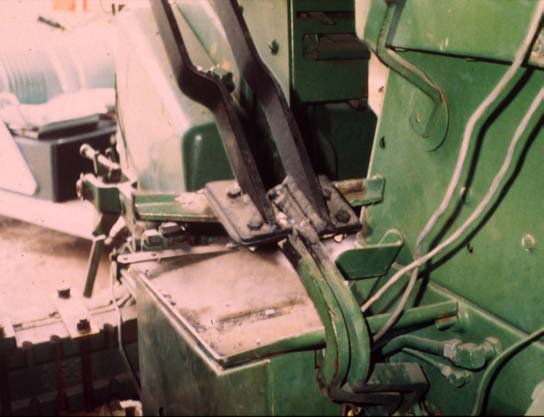

The two Hand Brake Levers that Granger, IA, farmer John Ricke made for his John Deere 4230 tractor allow easy and independent use of individual brakes. The levers are flat bar stock with bicycle grips for hand holds. They were bent such as to not interfere if someone wishes to operate the brakes with his feet. A short angle iron segment was welded to each brake pedal shank, with the flat surface facing up; and a piece of flat steel was welded to the bottom end of each control lever. The flat steel on the lever was then bolted to the angle iron on the pedal in order to fasten the hand brakes. Ricke activates the brakes by pulling the levers toward him. A disadvantage of this simple system is that welding components directly to the brake pedals probably lowers the tractor's market value and may compromise the strength of the pedal shank.

Estimated Cost Cost range: See below

Limitations Limitations Addressed by Product: Lower extremity


SourceJohn Ricke
R.R. #1, Box 87
Granger, IA, 50109

SourceJack's Welding
Woodward, IA, 50276
Phone515-438-2125

SourceLifeLyfts by Life Essentials
5364 South U.S. Highway 231
Wolcott, IN, 47995
Websitelifelyfts.com
Emailsales@lifelyfts.com
Phone765-563-3158
Fax765-563-3257
Est. CostContact for pricing.
