Foot-Controlled Gas Valve

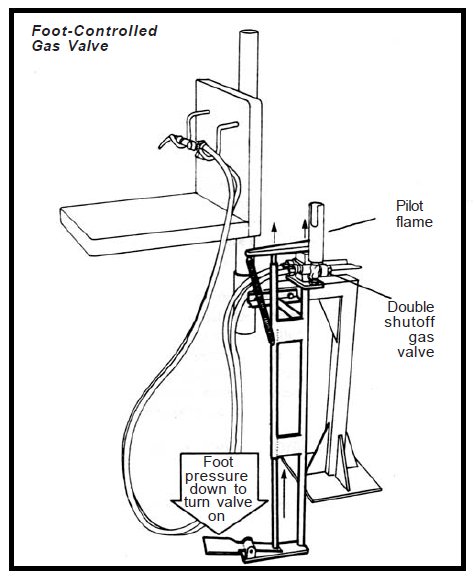

Attached to a welding stand is the vertical device that consists of a foot pedal at the bottom and the double gas-line plus pilot light at the top.

The Foot-Controlled Gas Valve, developed by University of Nebraska agricultural engineers, provides quick shut-off of the gas flow to a torch in the event it is dropped. With a typical acetylene torch, a double-shutoff valve controls the flow of both the oxygen and gas and the weight of a torch shuts off the flow; thus, when the torch is lifted, a spring opens the valves. The Nebraska device has a linkage with a spring to hold the valve closed even when the torch is lifted. Stepping on the foot pedal lifts the lever that opens the gas flow. When the foot pressure is removed, the gas flow stops.

Estimated Cost Cost range: See below

Limitations Limitations Addressed by Product: Respiratory, Upper extremity, Lower extremity


SourceThomas Silletto
University of Nebraska
Lincoln, NE, 68583
Emailtsilleto1@unl.edu
Phone402-472-2600
