Portable Cattle Crowding Tub and Alley

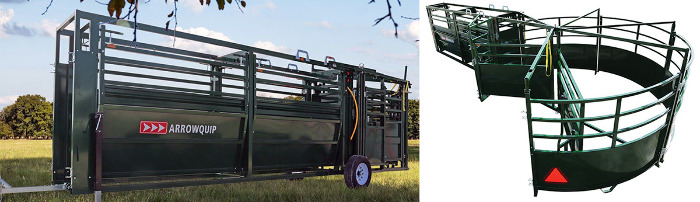

Left pic of long green metal trailer which is an Arrowquip cattle crowding alley folded up as a narrow rectangle on two wheels with a silver tongue on the front to attach to a hitch. Rt pic of same unit unfolded &  set up as crowding tub and alley

Consisting of crowding tub, narrow alley/chute with headlock, and outside fold-down work platform, a Portable Cattle Crowding Tub and Alley allows a farmer/rancher with physical impairments to work his animals from a safer position and at different locations. Once a given number of animals have been herded into the curved crowding tub, the tub's swing gate is closed, forcing them single-file into the alley/chute, at the end of which is a headlock to restrain the first one. Standing on the platform just outside the alley, one carries out the needed activities (e.g., ear-tagging, administering shots). When finished, pulling a lever releases the animal just worked and automatically restrains the next in line.

Estimated Cost Cost range: $19,600-$23,500 depending on model

Limitations Limitations Addressed by Product: Lower extremity, Upper extremity, Strength/endurance, Back, Visual


SourceArrowquip, Incorporated
141 Railway Avenue
Woodlands, Manitoba, R0C 3H0
Canada
Websitewww.arrowquip.com
Emailsales@arrowquip.com
Phone866-383-7827
204-383-5807
Fax844-270-2558

SourceNeptune Enterprises (Tuff-Built)
31877 Dog Hollow Road
Richland Center, WI, 53581
Websitewww.tuffbuiltag.com
Phone800-272-7547
608-574-1688

SourceReal-Tuff Livestock Equipment
15242 460th Street
Clearbrook, MN, 56634
Websitewww.realtuff.com
Emaildahlberg@realtuff.com
Phone800-474-6016
218-776-3188
Fax218-776-3275

SourceStur-D Products Company
2300 Skyhawk Avenue
Bismarck, ND, 58504
Websitewww.stur-d.com
Emailsturdproducts@yahoo.com
Phone800.279.5014
701 223-3161
Fax701.225.3164
Last updated: Nov 24, 2021
