Hide-Away Chute

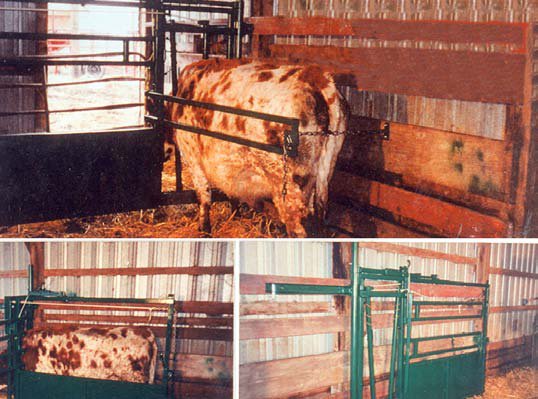

The Hide-Away Chute in folded position and unfolded with a cow restrained

The Hide-Away Chute allows one person to restrain and work an animal. It consists of a head gate mounted to a wall and a side gate hinged to the head gate (see figure). To use the chute, (a) the head gate swings away from the wall, (b) a bracing bar secured with a pin holds the gate perpendicular to the wall, (c) the side gate swings out from the head gate until parallel to the wall (or it can remain extended out from the head gate to act as a pen divider), and (d) a rope running from the head gate through a pulley to the back of the chute is pulled to close the head gate, thus restraining the animal. The chute folds flush against the wall for storage.

Archived This product is no longer produced. Information is included for reference and archival purposes.
Estimated Cost Cost range: See below

Limitations Limitations Addressed by Product: Upper extremity, Back, Lower extremity, Strength/endurance


SourceDSLA Company
R.R. 3, Box 115
Sisseton, SD, 57262
Phone800-387-3752
605-698-7492
Fax605-698-7444
Est. Cost$675
Last updated: Dec 29, 2023
